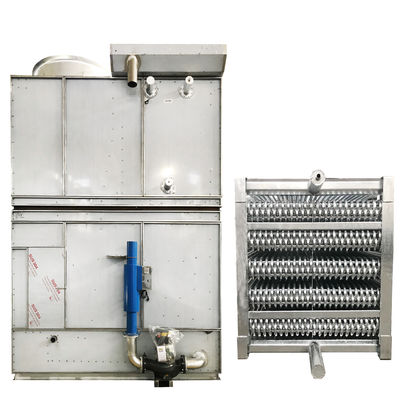

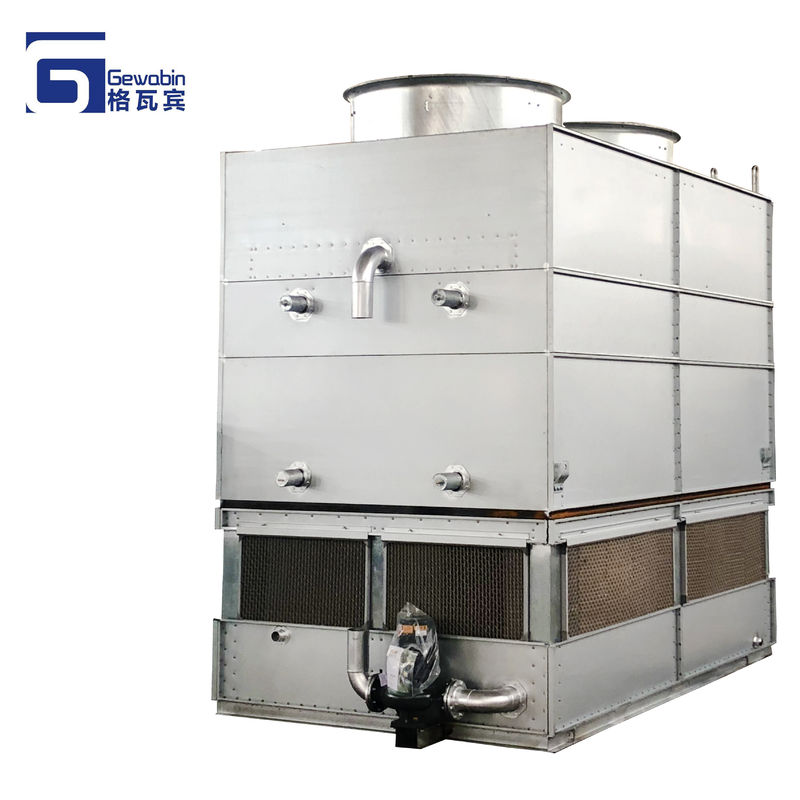

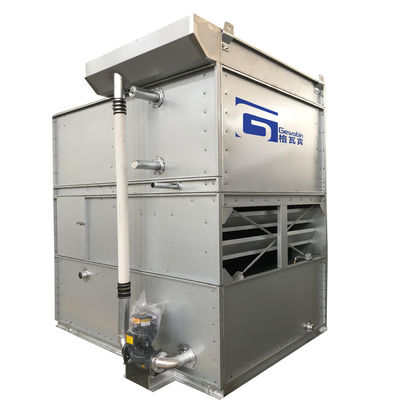

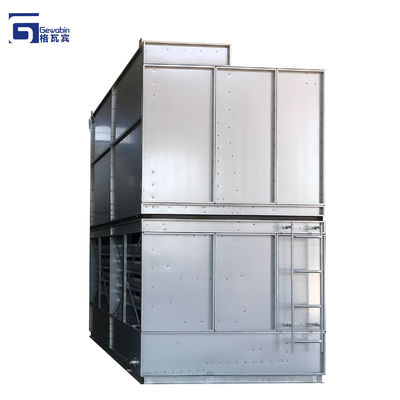

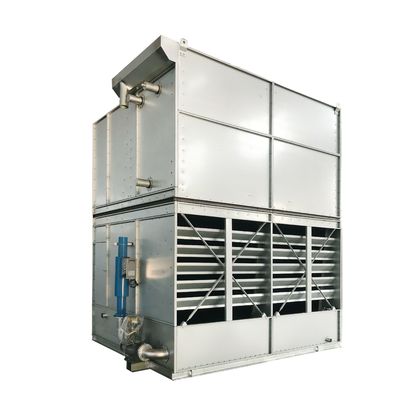

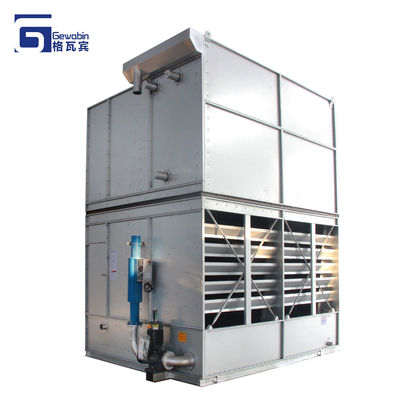

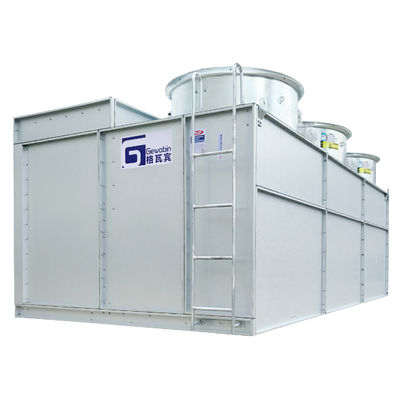

80 Ton Cooling Tower Exporter Square Closed Loop Type Counter Flow Water Cooling Tower
Ürün ayrıntıları:
| Menşe yeri: | Jiangsu, Çin |
| Marka adı: | RESPECT |
| Sertifika: | CE |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1/set |
|---|---|
| Fiyat: | $5,000.00 - $15,000.00/sets |
| Ambalaj bilgileri: | Konteyner veya ahşap kasa tarafından gönderildi |
| Teslim süresi: | 10 İş günü |
| Yetenek temini: | Ayda 30 set/set |
|
Detay Bilgi |
|||
| Uygulanabilir Endüstriler: | Oteller, Üretim Tesisi, Ev Kullanımı, İnşaat işleri, Reklam Şirketi | Soğutma Türü: | Karşı Akış |
|---|---|---|---|
| Malzeme: | maden | Gerilim: | 380V/50Hz |
| Boyut(U*G*Y): | Talebinize bağlı | Garanti: | 3 yıl |
| Önemli satış noktaları: | Sürdürülebilir | İsim: | Kapalı soğutma kulesi |
| Üretim süresi: | Tipik olarak 3 ~ 4 hafta | Sprazi Nozul Malzemesi: | Karams |
| Soğutma kulesi dolgusu: | Soğutma kulenize bağlı | Liman: | Şangay Limanı |
Ürün Açıklaması
80 Ton Cooling Tower Exporter Square Closed Loop Type Counter Flow Water Cooling Tower
Introduction
Evaporative Condenser for water cooling, The possibilities for choosing appropriate heat exchangers are severely limited when there is a particularly high power need and relatively little installation area.
In accordance with established industry quality standards, Gewabin uses the highest quality raw materials and cutting-edge technology in the manufacturing of its evaporative condensers.
| pecifications of Water-cooling Evaporative Condenser | |||
| Heat refection under Normal operating condition | kw | 2050 | |
| Propeller fan | Qty. | set | 2 |
| blowing rate | L/S | 2*16.7 | |
| Power | kg | 2*4.0 | |
| Water circulating pump | Water volume | m3/h | 170 |
| Power | kw | 4.0 | |
| Weight | shipping | kg | 7815 |
| Operating | kg | 11250 | |
| Refrigerant charge | kg | 221 | |
Working principle
Water poured upon a high-temperature gaseous refrigerant in a pipe coil causes heat exchange. During the procedure, the high-temperature gaseous refrigerant becomes liquid.
The heated spray water vapour is removed by the fresh air as it ascends from the bottom to the top of the condenser. The water fender board will stop the vapour water as it runs through pipe coils into the collection basin and then back into the circulation system. The water level regulator can be used to replenish the lost water.
Production Advantage
Water Cooling Evaporative Condensers are commonly used in various industrial and commercial applications to cool down water and remove excess heat generated by processes or equipment. These towers are designed to efficiently transfer heat from the water to the surrounding air through evaporation, ensuring optimal cooling and maintaining the desired temperature.
Water Cooling Evaporative Condensers offer several advantages, including their compact design, ease of installation, and efficient heat transfer capabilities. They are a cost-effective and reliable solution for various applications that require effective cooling and temperature control.
Application Case
